Siglent SPS5165X DC Power Supply 3 Channels

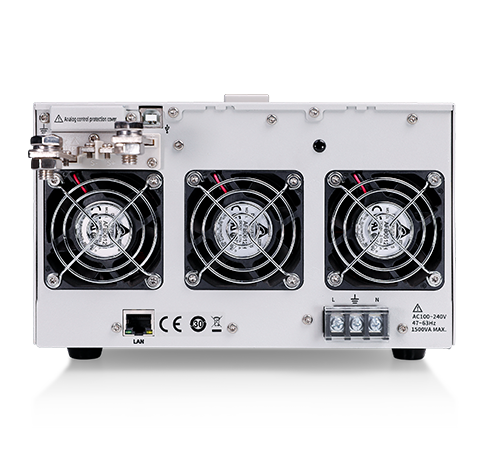

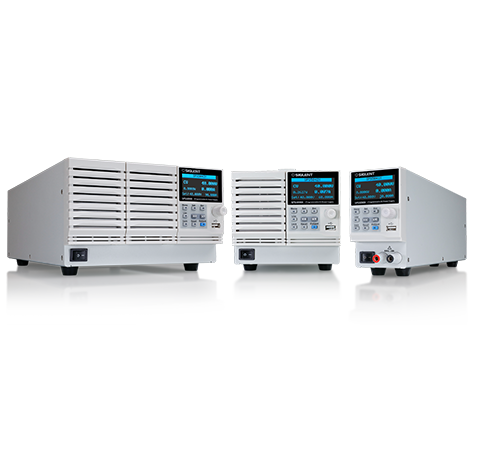

Product Photos |
|||
 |
 |
 |
 |
The SPS5000X-Series is a programmable Switching DC Power supply series that provides a wide range of output power using single-channel and multi-channel output configurations coupled with constant power capability. The series of power supplies includes sixteen models with voltages to 160 VDC and power to 1080 W. The SPS5000X supplies can be connected in series (2 units) or in parallel (3 units) to meet the requirements of 0~320V and 0~270A, with a maximum combined power of 3240W.
Features Siglent SPS5165X DC Power Supply 3 Channels :
- Rated Output Voltage：40V, 50V, 80V, 160V
- Rated Output Power：180W, 360W, 720W, 1080W
- Wide range of output voltage and current, high efficiency power supply
- CV, CC priority mode selection, better protection of equipment under test
- Load transient recovery time (Load change from 50~100%) <1ms
- Adjustable slew rate of output voltage and current
- Setting and readback resolution: 1 mV, 1 mA
Specification Siglent SPS5165X DC Power Supply 3 Channels :
| MODEL | SPS5061X | SPS5062X | SPS5063X | SPS5064X | SPS5065X |
|---|---|---|---|---|---|
| Output Channel | 1CH | 1CH | 1CH | 2CH | 3CH |
| Rated output voltage | 160V | 160V | 160V | 160V | 160V |
| Rated output current | 7.5A | 15A | 22.5A | 7.5A | 7.5A |
| Total Rated Output Power | 360W | 720W | 1080W | 720W | 1080W |
| Power Ratio | 3.33 | 3.33 | 3.33 | 3.33 | 3.33 |
| C.V MODE | SPS5061X | SPS5062X | SPS5063X | SPS5064X | SPS5065X |
| Line Regulation | 80mV (From 90 ~ 132Vac or 170 ~ 265Vac,constant load) | 80mV (From 90 ~ 132Vac or 170 ~ 265Vac,constant load) | 80mV (From 90 ~ 132Vac or 170 ~ 265Vac,constant load) | 80mV (From 90 ~ 132Vac or 170 ~ 265Vac,constant load) | 80mV (From 90 ~ 132Vac or 170 ~ 265Vac,constant load) |
| Load Regulation | 80mV (From No load to Full load, constant input voltage) | 80mV (From No load to Full load, constant input voltage) | 80mV (From No load to Full load, constant input voltage) | 80mV (From No load to Full load, constant input voltage) | 80mV (From No load to Full load, constant input voltage) |
| Ripple and Noise | (Noise Bandwidth 20MHz; Ripple Bandwidth 1MHz) | (Noise Bandwidth 20MHz; Ripple Bandwidth 1MHz) | (Noise Bandwidth 20MHz; Ripple Bandwidth 1MHz) | (Noise Bandwidth 20MHz; Ripple Bandwidth 1MHz) | (Noise Bandwidth 20MHz; Ripple Bandwidth 1MHz) |
| RIPPLE(pk to pk) | 60mV | 80mV | 100mV | 60mV | 60mV |
| RMS RIPPLE | 12mV | 15mV | 20mV | 12mV | 12mV |
| Voltage programming Accuracy |
0.1%±100 | 0.1%±100 | 0.1%±100 | 0.1%±100 | 0.1%±100 |
| Voltage programming resolution |
1mV | 1mV | 1mV | 1mV | 1mV |
| Voltage Readback Accuracy | 0.1%±100 | 0.1%±100 | 0.1%±100 | 0.1%±100 | 0.1%±100 |
| Voltage Readback resolution | 1mV | 1mV | 1mV | 1mV | 1mV |
| Temperature coefficient | 100ppm/°C from rated output voltage following 30-minute warm-up. | 100ppm/°C from rated output voltage following 30-minute warm-up. | 100ppm/°C from rated output voltage following 30-minute warm-up. | 100ppm/°C from rated output voltage following 30-minute warm-up. | 100ppm/°C from rated output voltage following 30-minute warm-up. |
| Remote compensation voltage (single wire) |
0.6V | 0.6V | 0.6V | 0.6V | 0.6V |
| Rise Time | 10% ~ 90% of rated output voltage, rated resistance load | 10% ~ 90% of rated output voltage, rated resistance load | 10% ~ 90% of rated output voltage, rated resistance load | 10% ~ 90% of rated output voltage, rated resistance load | 10% ~ 90% of rated output voltage, rated resistance load |
| Rated Load | 100ms | 100ms | 100ms | 100ms | 100ms |
| No Load | 100ms | 100ms | 100ms | 100ms | 100ms |
| Fall Time | 90% ~ 10% of rated output voltage, rated resistance load | 90% ~ 10% of rated output voltage, rated resistance load | 90% ~ 10% of rated output voltage, rated resistance load | 90% ~ 10% of rated output voltage, rated resistance load | 90% ~ 10% of rated output voltage, rated resistance load |
| Rated Load | 100ms | 100ms | 100ms | 100ms | 100ms |
| No Load | 1000ms | 1000ms | 1000ms | 1000ms | 1000ms |
| Transient response time | 2 (Time for recovery to within 0.1% + 10mV of its rated output against current of 50% ~ 100%.) |
2 (Time for recovery to within 0.1% + 10mV of its rated output against current of 50% ~ 100%.) |
2 (Time for recovery to within 0.1% + 10mV of its rated output against current of 50% ~ 100%.) |
2 (Time for recovery to within 0.1% + 10mV of its rated output against current of 50% ~ 100%.) |
2 (Time for recovery to within 0.1% + 10mV of its rated output against current of 50% ~ 100%.) |
| C.C MODE | SPS5061X | SPS5062X | SPS5063X | SPS5064X | SPS5065X |
| Line Regulation | 12mA | 19mA | 26mA | 12mA | 12mA |
| Load Regulation | 12mA | 19mA | 26mA | 12mA | 12mA |
| Ripple and Noise | |||||
| r.m.s | 15mA | 30mA | 45mA | 15mA | 15mA |
| Current Setting Accuracy | 0.1%±5 | 0.1%±15 | 0.1%±20 | 0.1%±5 | 0.1%±5 |
| Current programming resolution |
1mA | 1mA | 1mA | 1mA | 1mA |
| Current Readback Accuracy | 0.1%±5 | 0.1%±15 | 0.1%±20 | 0.1%±5 | 0.1%±5 |
| Current Readback resolution | 1mA | 1mA | 1mA | 1mA | 1mA |
| Temperature coefficient | 200ppm/°C from rated output current following 30-minute warm-up. | 200ppm/°C from rated output current following 30-minute warm-up. | 200ppm/°C from rated output current following 30-minute warm-up. | 200ppm/°C from rated output current following 30-minute warm-up. | 200ppm/°C from rated output current following 30-minute warm-up. |
| PROTECTION FUNCTIONS | SPS5061X | SPS5062X | SPS5063X | SPS5064X | SPS5065X |
| OVP | |||||
| Setting Range | 16V~176V | 16V~176V | 16V~176V | 16V~176V | 16V~176V |
| Setting Accuracy | ± (2% of rated output voltage) | ± (2% of rated output voltage) | ± (2% of rated output voltage) | ± (2% of rated output voltage) | ± (2% of rated output voltage) |
| OCP | The maximum output current limit of the front output terminal is 10A. | The maximum output current limit of the front output terminal is 10A. | The maximum output current limit of the front output terminal is 10A. | The maximum output current limit of the front output terminal is 10A. | The maximum output current limit of the front output terminal is 10A. |
| Setting Range | 0.75A~8.25A | 1.5A~16.5A | 2.25A~24.75A | 0.75A~8.25A | 0.75A~8.25A |
| Setting Accuracy | ±(2% of rated output current) | ±(2% of rated output current) | ±(2% of rated output current) | ±(2% of rated output current) | ±(2% of rated output current) |
| OTP | Over temperature alarm and shut off output. | Over temperature alarm and shut off output. | Over temperature alarm and shut off output. | Over temperature alarm and shut off output. | Over temperature alarm and shut off output. |
| Low AC Input Protection | Shut off output | Shut off output | Shut off output | Shut off output | Shut off output |
| LPP | The over power limit is approximately 105% of the rated output power | The over power limit is approximately 105% of the rated output power | The over power limit is approximately 105% of the rated output power | The over power limit is approximately 105% of the rated output power | The over power limit is approximately 105% of the rated output power |
Siglent SPS5165X Datasheet
