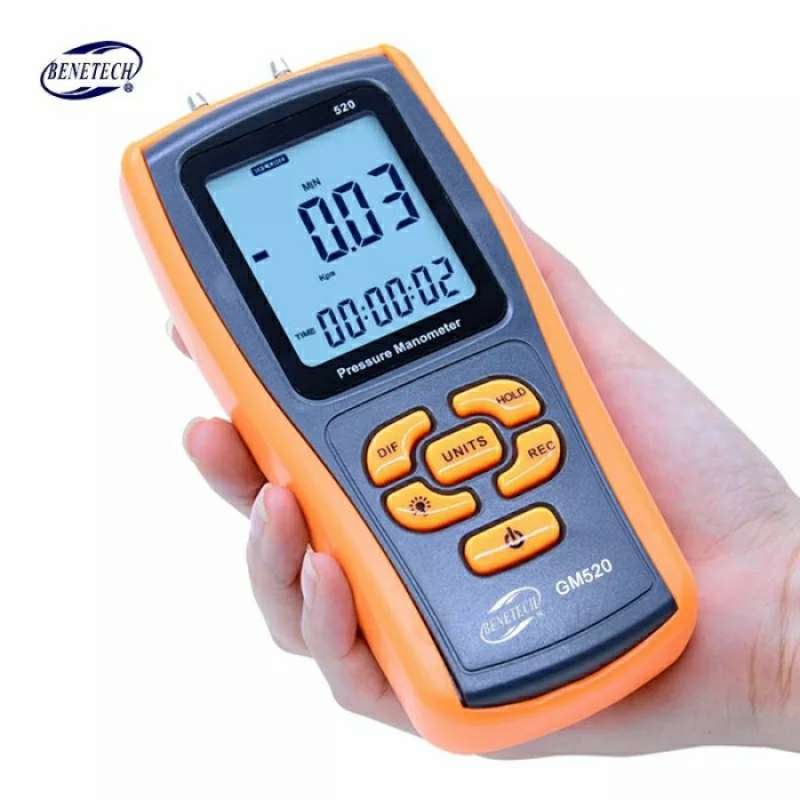

Benetech GM520 Pressure Manometer
Product Photos |
|||
 |
 |
 |
 |
There are following 11 selectable pressure units: bar、mbar、kPa、kgf/cm²、mmHg、cmH2O、Ozf/in²、psi、inHg、inH2O、ftH2O. This unit features data save and adjustment, automatic turn-off, connecting with PC to read and export the data with a USB wire.
Features Benetech GM520 Pressure Manometer :
- Large LCD
- Data hold
- With differential mode and record mode
- USB port
- Reset and data adjustment
- Low battery indication and automatic power off
Specification Benetech GM520 Pressure Manometer :
| Measuring range | ±35kPa |
| Accuracy | ±0.3%FSO(25℃) |
| Repeatability | ±0.2%(Maximum＋/－0.5 FSO) |
| Linearity/hysteresis | ±0.29 FSO |
| Response | Typical 0.5s |
| Low battery indication | Yes |
| Up overload indication | Err1 |
| Down overload indication | Err2 |
| Operating temperature | 0~50℃ |
| Storage temperature | -10~60℃ |
| Power supply | 1.5V AAA battery*4 |
| USB communication | Yes |
| Unit | Range | Resolution | Maximum pressure |
| bar | 0.350 | 0.001 | 1.500 |
| mbar | 350.0 | 0.1 | 1500.0 |
| kPa | 35.00 | 0.01 | 150 |
| kgf/cm² | 0.356 | 0.001 | 1.529 |
| mmHg | 262.5 | 0.1 | 1125.0 |
| cmH2O | 356.6 | 0.1 | 1528.5 |
| Ozf/in² | 81.20 | 0.01 | 348.00 |
| psi | 5.076 | 0.001 | 21.755 |
| inHg | 10.33 | 0.01 | 44.29 |
| inH2O | 140.3 | 0.1 | 601.5 |
| ftH2O | 11.69 | 0.01 | 50.10 |
| Environmental temperature compensation | |||
Benetech GM520 Datasheet
