Benetech GM3123 High Voltage Insulation Tester

● Auto- discharge function to make, the operation safe.
● LCD Back-light.
● Digital readout display.
● Live circuit warning symbols with audio sounds.
● Auto- power off function (in 10 minutes without operation)
● Timer measurement function.

JAVA SURVEY INDO adalah Distributor BENETECH di Indonesia, terjamin keasliannya dan garansi after salesnya

Benetech GM3123 High Voltage Insulation Tester

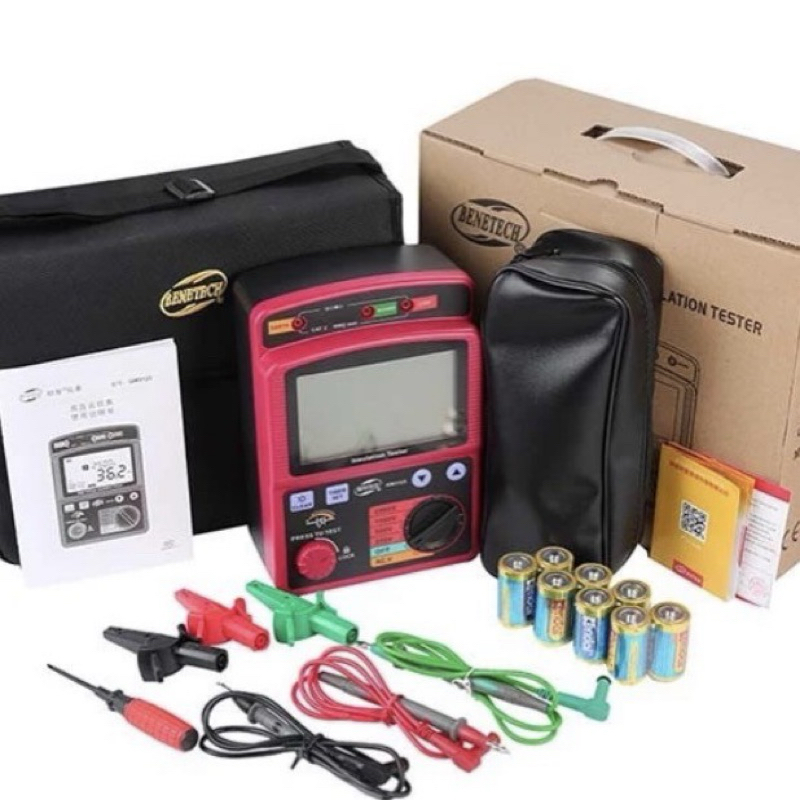

Product Photos

Insulation Tester Function
Insulation Tester is used to measure the resistance value of the insulation that wraps the conducting material used in electrical cables.

We often need a resistance tester in our daily life.
For example, when we are repairing electronic equipment, we need to know the resistance for basic safety.

Features Benetech GM3123 High Voltage Insulation Tester :

Auto- discharge function to make, the operation safe.
LCD Back-light.
Digital readout display.
Live circuit warning symbols with audio sounds.
Auto- power off function (in 10 minutes without operation)
Timer measurement function.
Low battery indication
Suitable for 12V DC adapter (12V/1A)

Specification Benetech GM3123 High Voltage Insulation Tester :

1. Insulation resistance tester:

Rated voltage	250V	500V	1000V	2500V
Test range	0.0~99.9MΩ 100~499MΩ	0.0~99.9 MΩ 100~999 MΩ	0.0~99.9 MΩ 100~999 MΩ 1.00~1.99GΩ	0.0~99.9 MΩ 100~999 MΩ 1.00~9.99GΩ 10.0~99.9GΩ
Open circuit voltage	DC 250V +30%, -0%	DC 500V +30% -0%	DC 1000V +20% -0%	DC 2500V +20% -0%
Rated current	0.5MΩloading 0.5mA~0.55mA	0.5MΩ loading 1mA~1.2mA	2.5MΩ loading 1mA~1.2mA	2.5MΩ loading 1mA~1.2mA
Short- circuit current	Approx. 1.3mA
Accuracy	±5%rdg±3%dgt

2. Voltage tester:

30~600V (Resolution 1V)

	DV	AV
Measuring range	±30~±600V	30~600V(50/60Hz)
Resolution	1V
Accuracy	±2%rdg±3dgt

3.Technology parameter:

Technology parameter	Technology index
Display	Max. 999 counts LCD display(1000 counts only at 1T is displayed)Bar graph/ max. 36 point.
Over range indication	OL mark appears on insulation resistance range. LO mark appears on voltage’s range.
Auto- ranging	Range shifts to upper range: 1000 count Range shifts to lower range: 95 counts (merely on the insulation resistance range)
Sample rate	0.5~ 10 times/sec
Operable altitude	Less than 2000m (Indoor use)
Operation circumstance	Temperature 0~40℃, humidity <= 85%
Storage circumstance	Temperature -20~ 60℃, humidity <= 90%
Overload protection	Insulation resistance : AC 1200V/ 10s Voltage : AC 720V/ 10 s
Voltage resistance	AC8320 (50/60Hz)/ 5 second (between electrical circuit and enclosure)
Insulation resistance	1000M of more/ DC 1000V (between electrical circuit and enclosure)
Power supply	DC12V (8×1.5V LR14 battery)
Battery’s life	Approx. 15 hours
Dimension	153x96x220mm
Weight	1032g (without batteries and test wires)

Benetech GM3123 Datasheet
